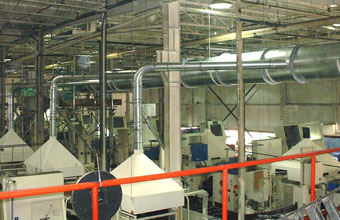

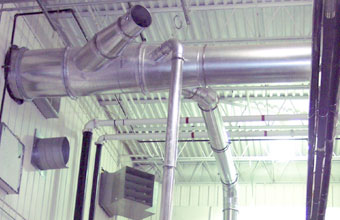

Ideal for fume, dust and material handling systems in laboratories, shops, and process manufacturing facilities requiring frequent rerouting of the ductwork due to process changes, McGill AirFlow's Uni-Quick duct system lowers the cost of installation and minimizes downtime when moving systems. Uni-Quick is designed to quickly assemble, disassemble, and reassemble to meet changing application requirements. Standard construction is applicable for +10 to -30 wg systems. Contact McGill AirFlow for applications exceeding those conditions.

Comprised of round sheet metal duct with standard roll-lipped ends, McGill's Uni-Quick system is supplied in standard and heavy gauge metal. Elbows (pleated, welded, and tube), branches (single and double), T- and Y-connectors, in-cuts, and cut-offs enable designers to develop optimal configurations.

Various adapters and reducers, butterfly valves, floor sweeps, ball joints, and flex hoses are easily connected, quickly and securely, using welded, O-ring-lined, snap-on clamps. Blast gates with automatic controls permit tuning configurations to application-specific airflow requirements. Radial arm hoods, No-Loss stack heads, bellmouths, in-line back blasts, and vibration dampers are available to meet all requirements. Standard O-ring gaskets are made from Buna-N, which is temperature resistant to a maximum of 250°F. Other O-ring materials include hi-temp red silicone (max 500°F), and FDA food-grade rubber, Goretex®, and Viton® for oil mist applications (all max 250°F).

Sizes

Standard round duct in five-foot lengths is offered in 3- to 22-inch (except 21-inches) diameters in one-inch increments in galvanized or stainless steel.

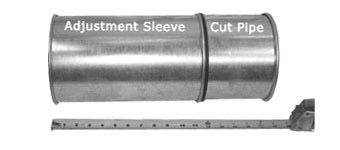

Adjustable sleeve pipe assemblies maximize flexibility for challenging system configurations. The standard adjustable sleeves are 11 inches long and provide 11 to 18 inches of adjustment. Clamp-on connectors with rubber O-rings ensure airtight seals.

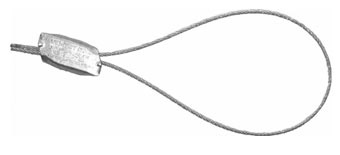

Duct systems are suspended using hangers made from woven-wire cable, which is offered in three load-measured gauges. Hangers are quickly attached using hardened, self-locking metal grips.
